ebm-papst Inc.Germany

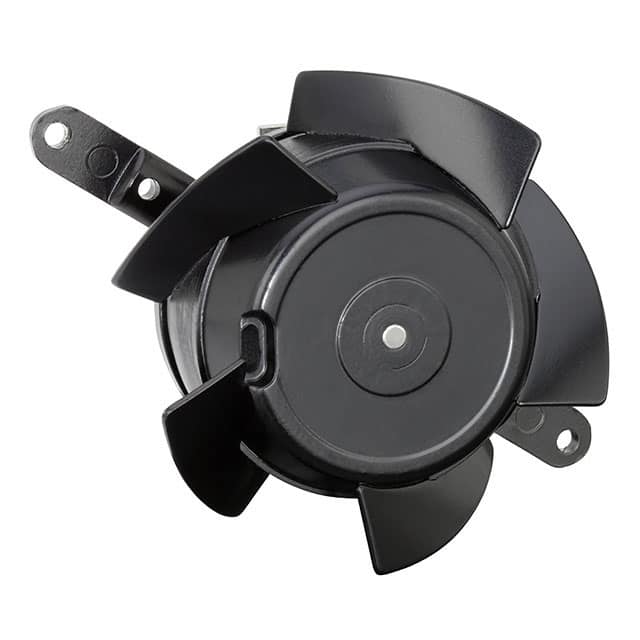

FAN AXIAL 76X37MM 115VAC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Power (Watts) | 11.00W |
| Voltage Range | - |
| Voltage - Rated | 115VAC |
| AC and DC characteristics | |
| Noise | 32.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 55000 Hrs @ 40°C |
| Operating Temperature | 14~167°F(-10~75°C) |
| Package | Bulk |
| Size / Dimension | Round - 76mm Dia |
| Other | |
| Air Flow | 27.7 CFM (0.776m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | 8500 |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Features | - |
| Ingress Protection | - |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Mfr | ebm-papst Inc. |
| Product Status | Obsolete |
| RPM | 3150 RPM |
| Series | 8000TV |
| Static Pressure | - |
| Termination | 2 Wire Leads |
| Weight | 0.816 lb (370.13 g) |
| Width | 37.00mm |
