Alpha WireUnited States
86325

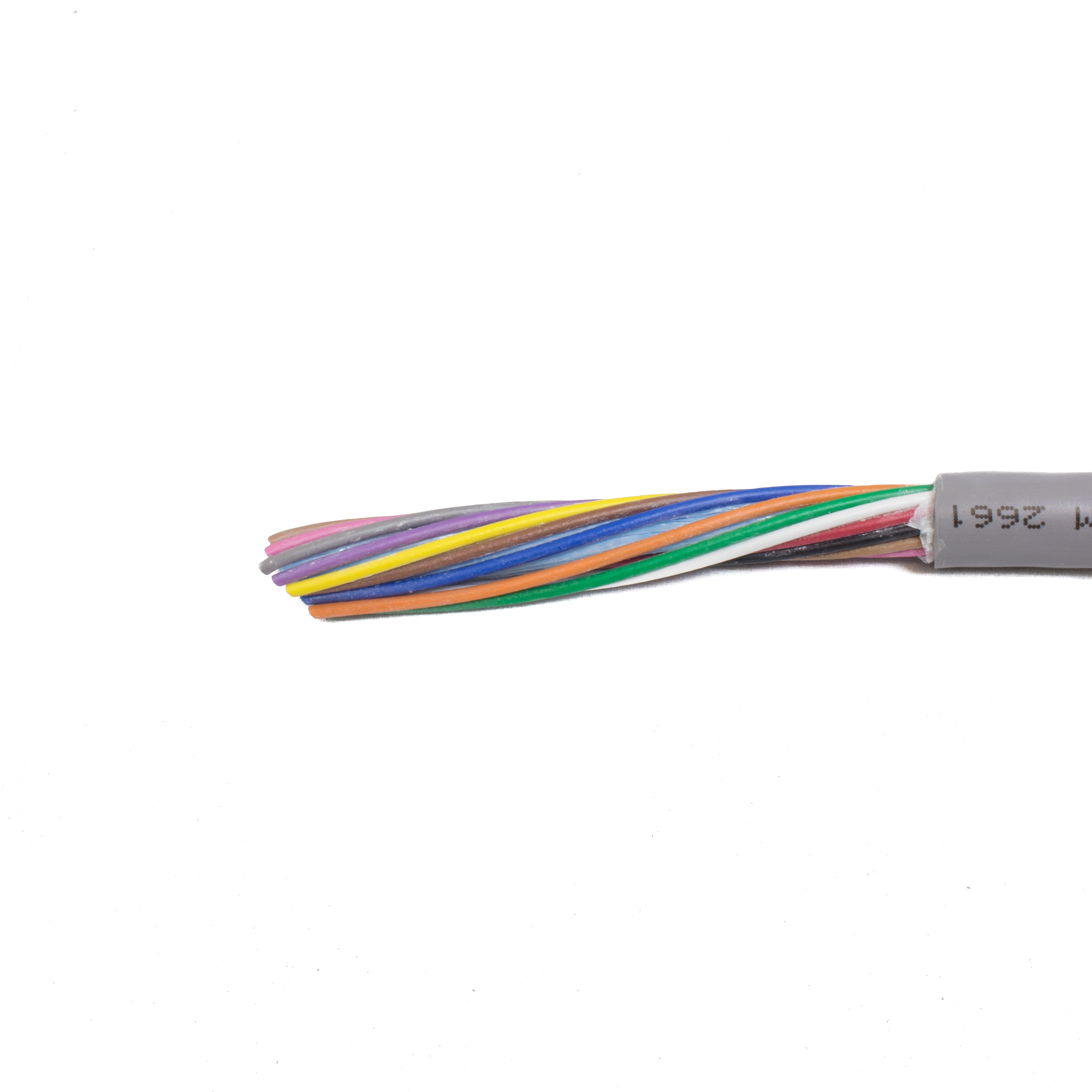

ActiveXtra-Guard Flex 22 AWG 25 Conductor is a long-lasting flexible cable designed to provide excellent performance in high-flex, high torsion, and continuous-flex applications
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| Environment and package | |
| 1) Temperature Range | -10 to 105°C(static), +5 to 105°C (dynamic) |
| Other | |
| (1) Color Code | Alpha Wire Color Code D |
| 1) Component 1 | 25 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 8X Cable Diameter(static), 8X Cable Diameter(dynamic) |
| 2) Cable Assembly | 25 Components Cabled |
| 2) Capacitance | 23.9 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Inductance | 0.17 μH/ft, Nominal |
| 3) Other | Oil Resistant |
| 3) Pull Tension | 148 Lbs, Maximum |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Conductor DCR | 15.5 Ω/1000ft @20°C, Nominal |
| 4) Sunlight Resistance | Yes |
| a) 1000 FT | 24 x 14 x 12 Continuous length |
| a) Color(s) | SLATE |
| a) Twists | 3.2 Twists/foot (min) |
| b) 500 FT | 18 x 9 x 8 Continuous length |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Print | ALPHA WIRE-* P/N 86325 25C 22 AWG XTRAGUARD(R) CONTINUOUS FLEX DATA CABLE (UL) TYPE PLTC 105C OR TYPE CM 105C SUN RES OR C(UL) CMG OR AWM 2661 105C 300V --- LLXXXXXX CSA AWM I/II A/B FT4 105C 300V CE ROHS OIL RESISTANT (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| c) 100 FT | 12 x 5.94 x 5 Continuous length |
| c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. |
| CM | 105°C |
| Color | BLACK |
| Cond | 1 |
| C(UL) TYPE CMG | 105°C |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
| PLTC | 105°C |
