8690720000
WeidmüllerGermany

8690720000

ObsoletePower Relays, Over 2 Amps

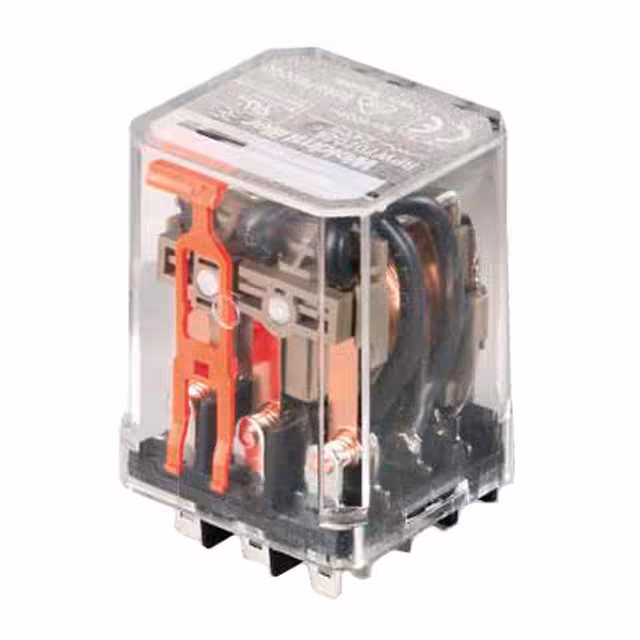

RELAY GEN PURPOSE DPDT 16A 230V

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Coil voltage230 V
Contact formDPDT
Contact current16 AMax
Switching voltage440 VMax
Power
Coil Current10.1 mA
Coil Voltage230VAC
Contact Rating (Current)16 A
Must Operate Voltage184 VAC
Must Release Voltage69 VAC
Switching Voltage440VAC - Max
Environment and package
Mounting TypeSocketable
Operating Temperature-45°C~60°C
PackageBulk
Other
Coil Insulation-
Coil Resistance8.3 kOhms
Coil TypeNon Latching
Contact FormDPDT (2 Form C)
Contact MaterialSilver Cadmium Oxide (AgCdO)
Features-
MfrWeidmüller
Operate Time15 ms
Product StatusObsolete
Relay TypeGeneral Purpose
Release Time10 ms
Seal Rating-
SeriesRPW
Termination StylePlug In, Quick Connect - 0.187" (4.7mm)
