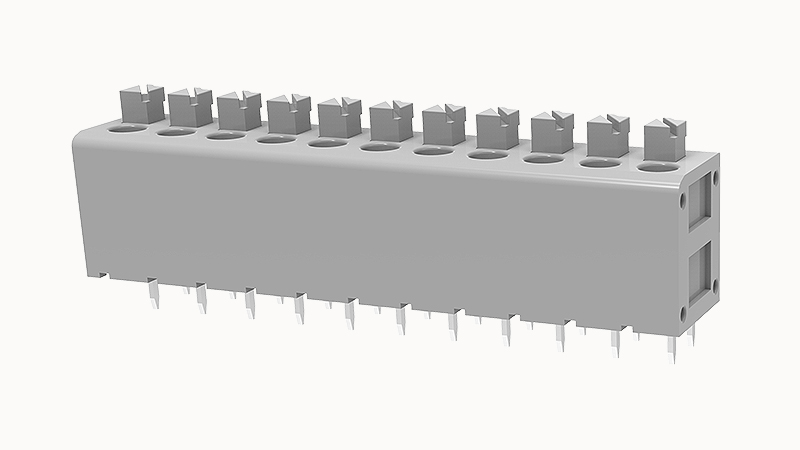

Spring Type PCB Terminal Blocks
All alternatives
View full reportTechnical parameters
Key specs
Positions11
Rows1
Pitch5 mm
Current rating8 AMax
| Power | |
|---|---|
| Overvoltage category/Degree of pollution | III/3 / III/2 / II/2 |
| Rated current | 10A |
| Rated current (B) | 8A |
| Rated current (C) | 8A |
| Rated current (D) | 8A |
| Rated voltage | 400V |
| Rated voltage (B) | 300V |
| Rated voltage (C) | 300V |
| Rated voltage (D) | 300V |
| Rated voltage(III/2) | 400V |
| AC and DC characteristics | |
| Rated power frequency voltage(1min) | 2.5KV |
| Environment and package | |
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
| Other | |
| AWG | 20~16AWG |
| Bridge | / |
| Coding strip | / |
| Conductor cross section flexible | 0.2~1.5mm² |
| Conductor cross section solid | 0.2~1.5mm² |
| Connection direction | 90° |
| Connection method | Push-in spring connection |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Cross section | / / 0.2~1.5 / / |
| DG236-5.0-11P-1Y-00A&Z(H).stp | Download |
| DG236-5.0-XXP-1Y-00A&Z(H).dxf | Download |
| DG236-5.0-XXP-1Y-00A&Z(H).pdf | Download |
| Environmental items | Compliant with REACH/RoHS |
| Flammability rating | UL94V-0 |
| Insulating material group | Ⅰ |
| Insulation Materials | PA66 |
| Marking strip | / |
| Minimum order quantity | 30 |
| Number of potentials | 11 |
| Number of rows | 1 |
| Operating tool | / |
| Order number | 10060000951 |
| Others | / |
| Packing unit | 275 |
| Pin arrangement | Double-row in a straight line |
| Pitch | 5mm |
| Pluggable or not | no |
| Process | Wave soldering/manual soldering |
| Products weight (without packaging) | 10.57 |
| Screwdriver | / |
| Strip length | 8mm |
| Test Specification | UL1059/IEC60998 |
| Type of installation | PCB welding |
| Use group | B / C / D |
