CrouzetFrance
CONTROL LOGIC 16 IN 10 OUT 24V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 24VDC |
| Environment and package | |
| Memory Size | 2K Octets |
| Mounting Type | Chassis Mount, DIN Rail |
| Operating Temperature | -20°C~60°C |
| Package | Box |
| Other | |
| Approval Agency | CE, cULus |
| Communications | USB |
| Display Type | LCD - White Characters, Backlight |
| Expandable | Non-Expandable |

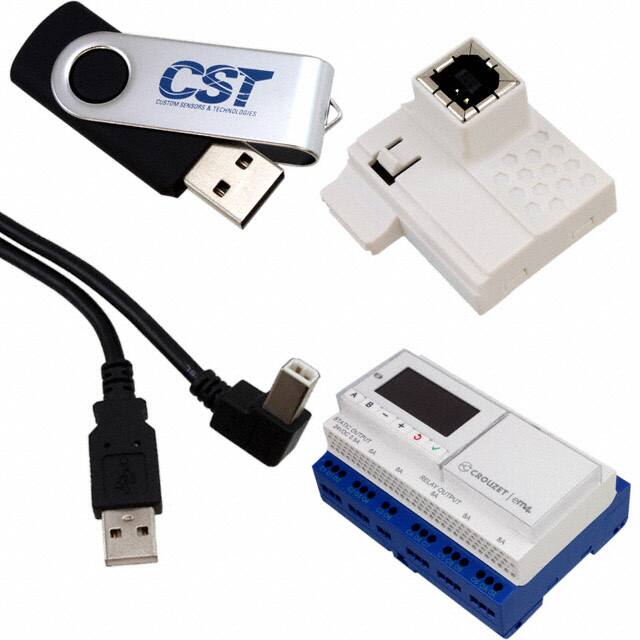

| Features | Starter Kit: Cable, Controller, Software, USB Interface |
| Ingress Protection | IP40 |
| Mfr | Crouzet |
| Number of Characters Per Row | 18, 18, 18, 18 |
| Number of Inputs and Type | 16 - Digital (4), Analog/Digital (12) |
| Number of Outputs and Type | 10 - PWM/Solid State (2), Relay (8) |
| Product Status | Obsolete |
| Series | em4, B26 |
| Software | em4 Soft |
| Weight | 0.784 lb (355.62 g) |
Documents
No documents are linked to this part yet.
