901-280
AmphenolUnited States

901-280

ActiveCoaxial Connector (RF) Adapters

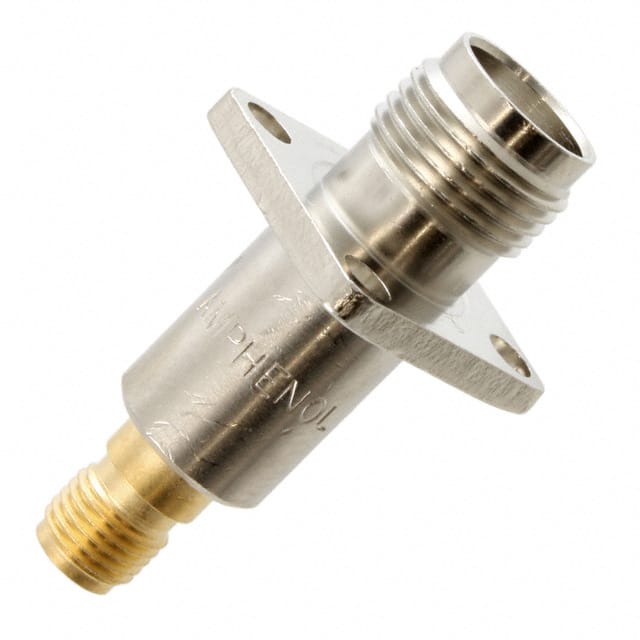

CONN ADAPT TNC JACK TO SMA JACK

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency - Max12.4 GHz
Impedance50Ohm
Environment and package
Mounting FeatureFlange
Mounting TypePanel Mount
Operating Temperature-65°C~165°C
PackageBulk
Other
Adapter SeriesSMA to TNC
Adapter TypeJack to Jack
Base Product Number901-28
Body FinishGold; Nickel
Body MaterialBeryllium Copper, Brass
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Center GenderFemale to Female
Conversion TypeBetween Series
Convert From (Adapter End)TNC Jack, Female Socket
Convert To (Adapter End)SMA Jack, Female Socket
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded, Threaded
Features-
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrAmphenol RF
Product StatusActive
Series-
StyleStraight
