Belden Inc.United States

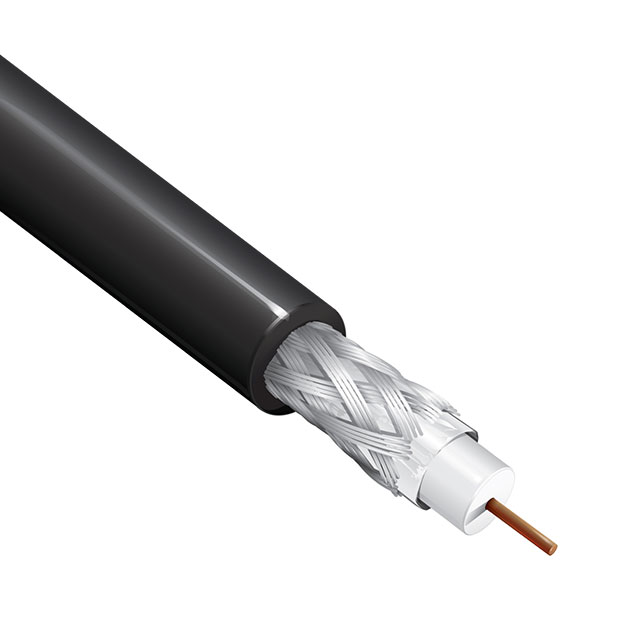

CABLE COAX 18 AWG
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Impedance | 75 Ohms |
| Environment and package | |
| Operating Temperature | -40°C ~ 80°C |
| Package | Spool |
| Other | |
| Base Product Number | 9116 |
| Cable Group | RG-6 |
| Cable Type | Coaxial |
| Conductor Material | Steel, Copper Coated |
| Conductor Strand | Solid |
| Dielectric Diameter | 0.180" (4.57mm) |
| Dielectric Material | Foam Polyethylene (FPE) |
| Features | - |
| Jacket Color | Black |
| Jacket (Insulation) Diameter | 0.270" (6.86mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length | 1000.0' (304.80m) |
| Mfr | Belden Inc. |
| Product Status | Active |
| Series | - |
| Shield Coverage | 100%, 60% |
| Shield Material | Aluminum |
| Shield Type | Foil, Braid |
| Usage | CATV |
| VoP, Velocity of Propagation | 83 |
| Wire Gauge | 18 AWG |
