B&K PrecisionUnited States

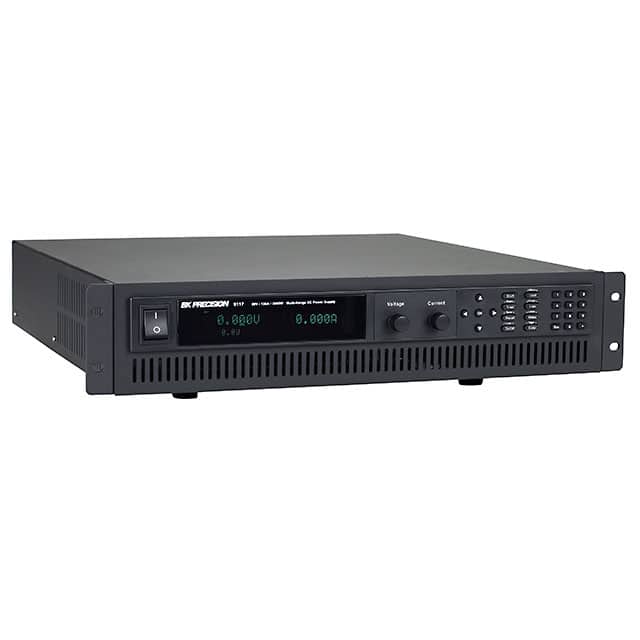

DC POWER SUPPLY 80V 120A 3000W
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 120A |
| Power (Watts) | 3000W |
| Voltage - Output | 0 ~ 80VDC |
| Voltage - Supply | 220VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.05% + 30mV; 0.2% + 120mA |
| Current Regulation - Line | 0.02% + 10mA |
| Current Regulation - Load | 0.1% + 30mA |
| Ripple | 80mV p-p |
| Voltage Regulation - Line | 0.02% + 20mV |
| Voltage Regulation - Load | 0.05% + 30mV |
| Environment and package | |
| Package | Box |
| Size / Dimension | 20.945" L x 17.185" W x 3.516" H (532.00mm x 436.50mm x 89.30mm) |
| Other | |
| Display Type | VFD |
| Features | GPIB Interface, Memory, Programmable, LAN, RS-232, RS-485, and USB Interface |
| Mfr | B&K Precision |
| Number of Characters | 5 (2) |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | 9115 |
| Type | Rack Mount (AC to DC) |
| Weight | 37 lbs (16.8 kg) |
