B&K PrecisionUnited States

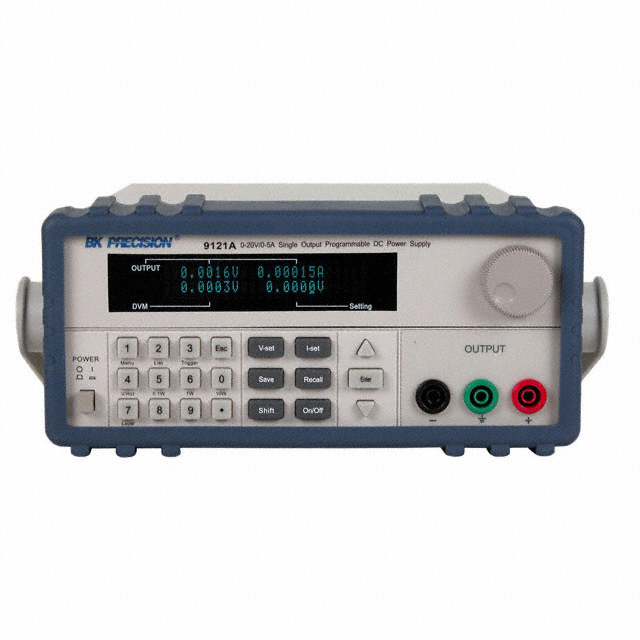

PWR SUP SNG OUTPUT PROG 20V 5A
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 0 ~ 5A |
| Power (Watts) | 100W |
| Voltage - Output | 0 ~ 20VDC |
| Voltage - Supply | 110VAC, 220VAC |
| AC and DC characteristics | |
| Accuracy - Voltmeter; Ammeter | 0.02% + 3mV; 0.05% + 2 mA |
| Current Regulation - Line | 0.05% + 1mA |
| Current Regulation - Load | 0.05% + 1mA |
| Ripple | 3mV p-p |
| Voltage Regulation - Line | 0.01% + 1mV |
| Voltage Regulation - Load | 0.01% + 2mV |
| Environment and package | |
| Package | Bulk |
| Size / Dimension | 13.900" L x 8.450" W x 3.470" H (353.06mm x 214.63mm x 88.14mm) |
| Other | |
| Display Type | VFD |
| Features | Programmable, RS232 Port |
| Mfr | B&K Precision |
| Number of Characters | - |
| Number of Outputs | 1 |
| Product Status | Obsolete |
| Series | 9120 |
| Type | Bench (AC to DC) |
| Weight | 20 lbs (9.1 kg) |
