AntenovaUnited Kingdom

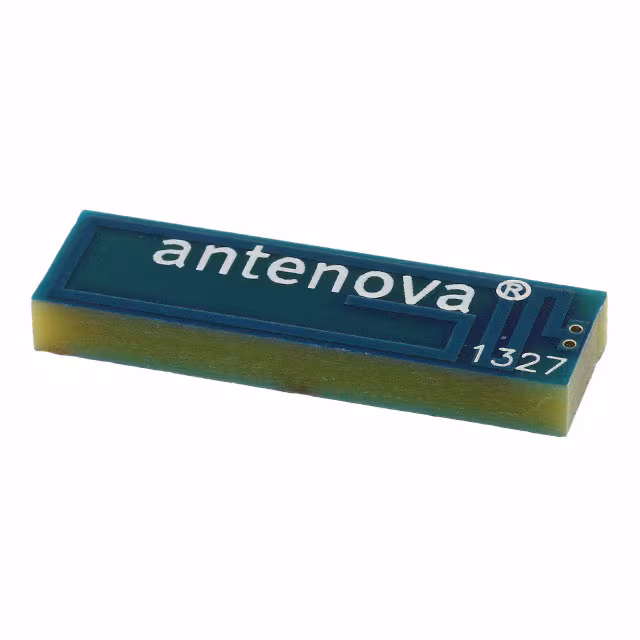

RF ANT 850/900MHZ PCB TRACE SLD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency Range | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz |
| Gain | 1.7dBi, 3dBi |
| Environment and package | |
| Height (Max) | 0.126" (3.20mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Antenna Type | PCB Trace |
| Applications | GSM, UMTS |
| Features | - |
| Ingress Protection | - |
| Mfr | Antenova |
| Number of Bands | 5 |
| Product Status | Obsolete |
| Return Loss | -6dB |
| RF Family/Standard | Cellular |
| Series | Calvus |
| Termination | Solder |
| VSWR | 3.1 |
