Hoffman Enclosures, Inc.United States

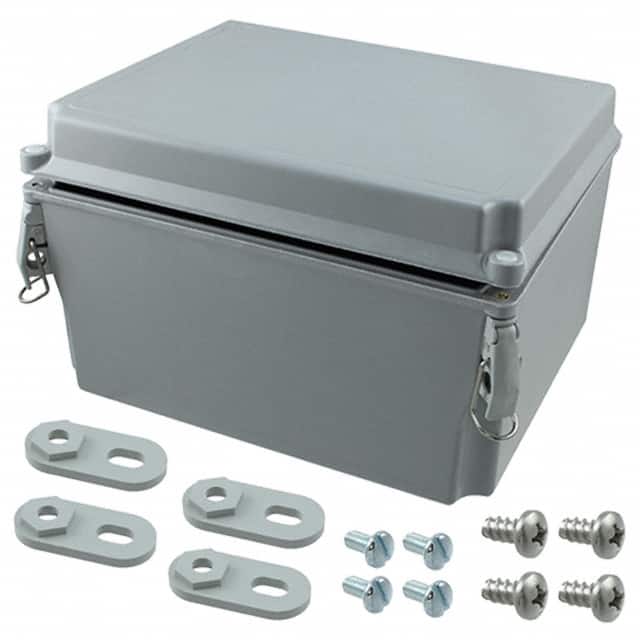

JUNCTION BOX FIBERGLASS18"LX16"W
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Height | 10.000" (254.00mm) |
| Package | Bulk |
| Size / Dimension | 17.992" L x 15.984" W (457.00mm x 406.00mm) |
| Other | |
| Area (L x W) | 288in² (1858cm²) |
| Base Product Number | A181610 |
| Color | Gray |
| Container Type | Junction Box |
| Design | Hinged Door, Lid |
| Features | Sealing Gasket, Wall Mount |
| Material | Fiberglass/Polyester |
| Material Flammability Rating | - |
| Mfr | Hoffman Enclosures, Inc. |
| Product Status | Active |
| Ratings | IP66, NEMA 4,4X,12,13, UL-508A |
| Series | - |
| Shipping Info | Shipped from Digi-Key |
| Thickness | 0.157" (4.00mm) |
| Weight | 16 lbs (7.3 kg) |
