KEMETUnited States

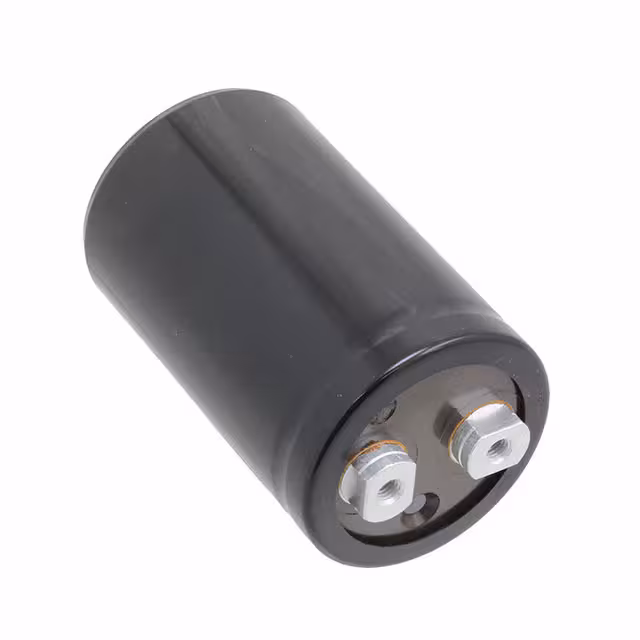

CAP ALUM 47000UF 20% 40V SCREW
All alternatives
View full reportTechnical parameters
Key specs
Capacitance47 mF
Rated voltage40 V
Tolerance20 %
ESR12 mΩMax · 100Hz
Lifetime18 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 40 V |
| AC and DC characteristics | |
| Impedance | 11 mOhms |
| Ripple Current @ High Frequency | 16.7 A @ 10 kHz |
| Ripple Current @ Low Frequency | 14.2 A @ 100 Hz |
| Environment and package | |
| Height - Seated (Max) | 3.307" (84.00mm) |
| Lifetime @ Temp. | 18000 Hrs @ 85°C |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Base Product Number | A431LH |
| Capacitance | 47000 µF |
| ESR (Equivalent Series Resistance) | 12mOhm @ 100Hz |
| Lead Spacing | 0.874" (22.20mm) |
| Mfr | KEMET |
| Polarization | Polar |
| Product Status | Active |
| Ratings | - |
| Series | ALS31 |
| Tolerance | ±20% |
