Abracon LLCUnited States

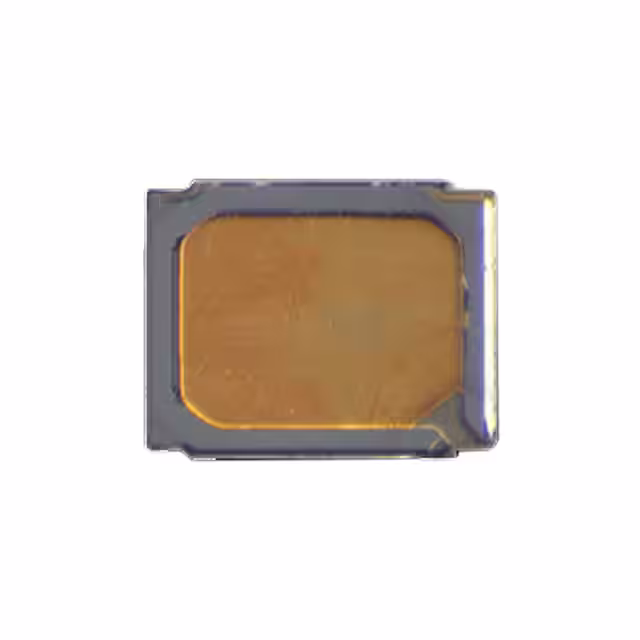

CRYSTAL 32.7680KHZ 4PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency32.77 kHz
Frequency tolerance30 ppm
Load capacitance4 pF
ESR130 kΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±30ppm |
| Environment and package | |
| Height - Seated (Max) | 0.014" (0.35mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.047" L x 0.039" W (1.20mm x 1.00mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 130 kOhms |
| Load Capacitance | 4pF |
| Mfr | Abracon LLC |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | - |
| Series | ABS04W |
| Type | kHz Crystal (Tuning Fork) |
