Abracon LLCUnited States

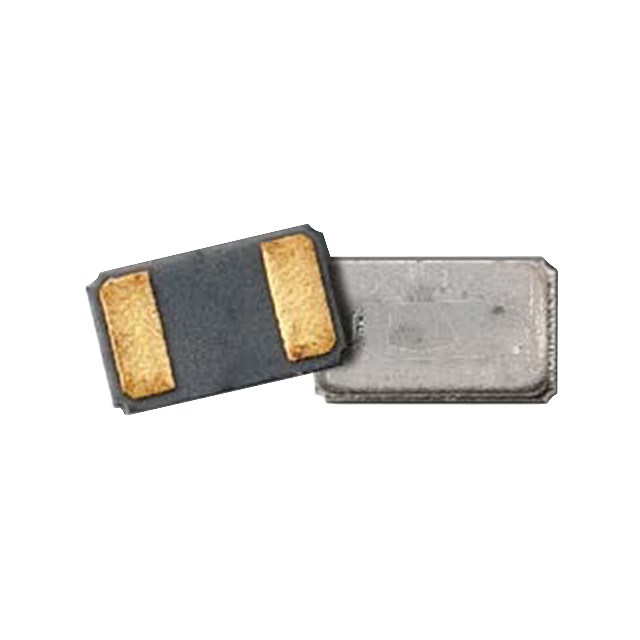

CRYSTAL 32.7680KHZ 12.5PF SMD
All alternatives
View full reportTechnical parameters
Key specs
Frequency32.77 kHz
Frequency tolerance20 ppm
Load capacitance12.5 pF
ESR90 kΩMax
| AC and DC characteristics | |
|---|---|
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Environment and package | |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Other | |
| ESR (Equivalent Series Resistance) | 90 kOhms |
| Load Capacitance | 12.5pF |
| Mfr | Abracon LLC |
| Operating Mode | Fundamental |
| Product Status | Active |
| Ratings | - |
| Series | ABS06 |
| Type | kHz Crystal (Tuning Fork) |
