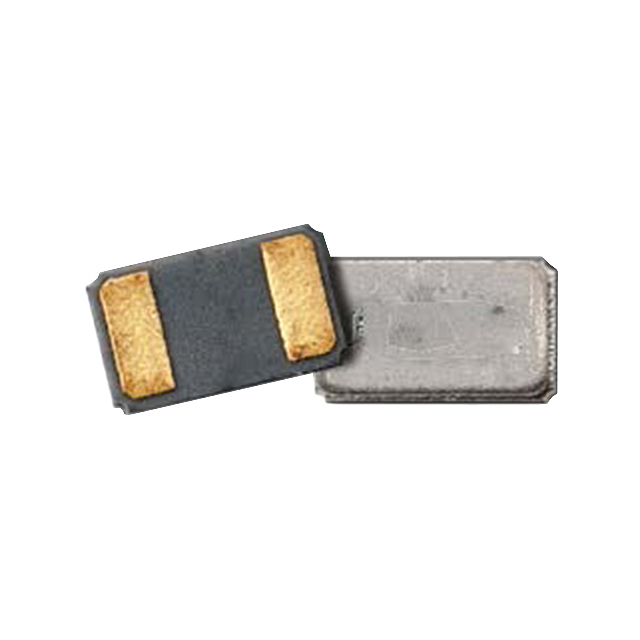

ABS06L-32.768KHZ-9-T
Abracon LLCUnited States

ABS06L-32.768KHZ-9-T

ObsoleteCrystals

CRYSTAL 32.7680KHZ 12.5PF SMD

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Frequency32.77 kHz
Frequency tolerance20 ppm
Load capacitance9 pF
ESR100 kΩMax
AC and DC characteristics
Frequency32.768 kHz
Frequency Stability-
Frequency Tolerance±20ppm
Environment and package
Height - Seated (Max)0.015" (0.38mm)
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 85°C
PackageTape & Reel (TR)
Package / Case2-SMD, No Lead
Size / Dimension0.079" L x 0.047" W (2.00mm x 1.20mm)
Other
ESR (Equivalent Series Resistance)100 kOhms
Load Capacitance9pF
MfrAbracon LLC
Operating ModeFundamental
Product StatusObsolete
Ratings-
SeriesABS06L
TypekHz Crystal (Tuning Fork)
