Analog Devices Inc.United States

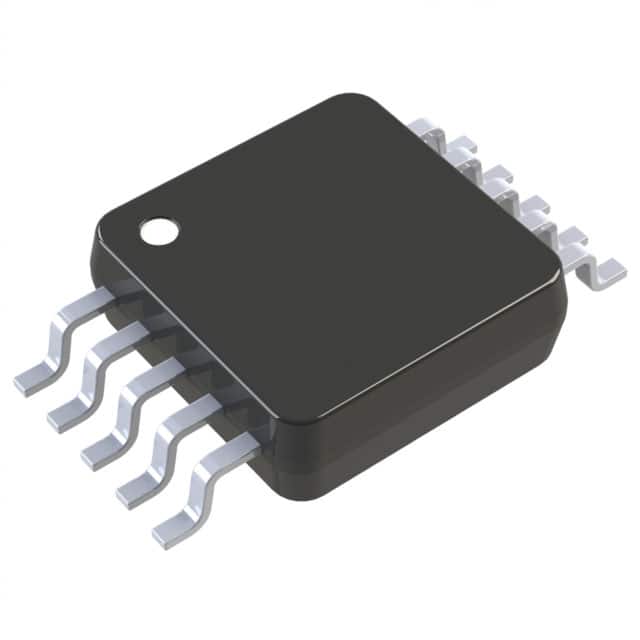

IC DAC 14BIT V-OUT 10MSOP
All alternatives
View full reportTechnical parameters
Key specs
Resolution14 bit
Channels4
InterfaceSPI
Output typeVoltage
Supply voltage≥ 5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| AC and DC characteristics | |
| Settling Time | 5µs |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Other | |
| Architecture | String DAC |
| Base Product Number | AD5644 |
| Data Interface | SPI, DSP |
| Differential Output | No |
| INL/DNL (LSB) | ±2, ±0.5 (Max) |
| Mfr | Analog Devices Inc. |
| Number of Bits | 14 |
| Number of D/A Converters | 4 |
| Output Type | Voltage - Buffered |
| Product Status | Active |
| Reference Type | External, Internal |
| Series | nanoDAC® |
