Analog Devices Inc.United States

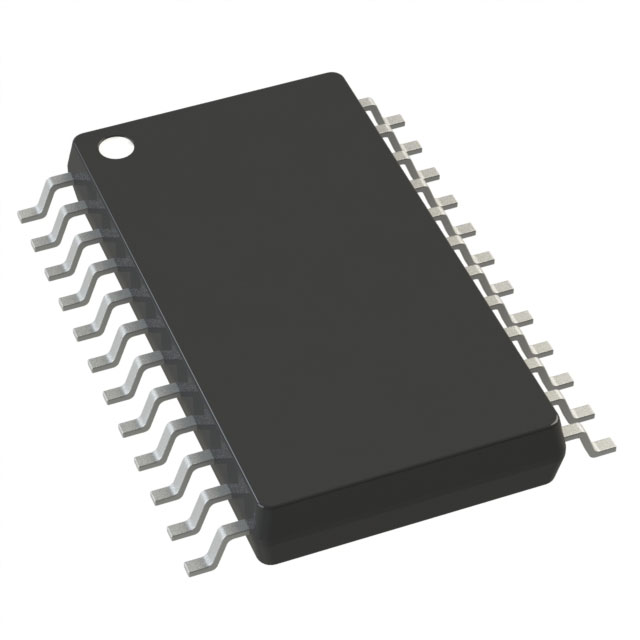

IC ADC 32BIT SIGMA-DELTA 24TSSOP
All alternatives
View full reportTechnical parameters
Key specs
Resolution32 bit
Sampling rate10 kSPSMax
Inputs2 ~ 4
InterfaceSPI
Supply voltage2.5 ~ 5.5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Other | |
| Architecture | Sigma-Delta |
| Base Product Number | AD7177 |
| Configuration | MUX-ADC |
| Data Interface | SPI, DSP |
| Features | Temperature Sensor |
| Input Type | Differential, Single Ended |
| Mfr | Analog Devices Inc. |
| Number of A/D Converters | 1 |
| Number of Bits | 32 |
| Number of Inputs | 2, 4 |
| Product Status | Active |
| Ratio - S/H:ADC | - |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 10k |
| Series | - |
