Texas InstrumentsUnited States

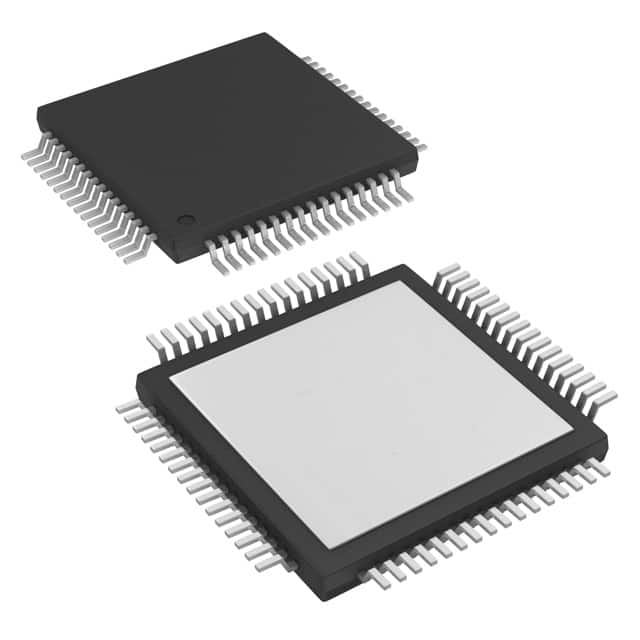

IC ADC 12BIT PIPELINED 64HTQFP
All alternatives
View full reportTechnical parameters
Key specs
Resolution12 bit
Sampling rate50 MSPSMax
Inputs2
InterfaceParallel
Supply voltage≥ 5 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 5V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR) |
| Package / Case | 64-PowerTQFP |
| Supplier Device Package | 64-HTQFP (10x10) |
| Other | |
| Architecture | Pipelined |
| Base Product Number | ADS2807 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Features | Simultaneous Sampling |
| Input Type | Differential, Single Ended |
| Mfr | Texas Instruments |
| Number of A/D Converters | 2 |
| Number of Bits | 12 |
| Number of Inputs | 2 |
| Product Status | Active |
| Ratio - S/H:ADC | 1:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 50M |
| Series | - |
