Delta ElectronicsTaiwan, China

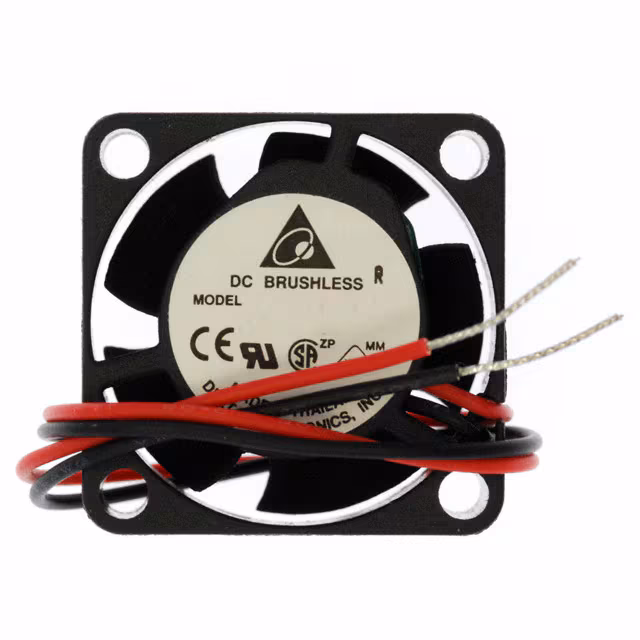

FAN AXIAL 25X10MM 12VDC WIRE
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 0.080A |
| Power (Watts) | 960 mW |
| Voltage Range | 7 ~ 13.2VDC |
| Voltage - Rated | 12VDC |
| AC and DC characteristics | |
| Noise | 28.0dB(A) |
| Environment and package | |
| Lifetime @ Temp. | 30000 Hrs @ 40°C |
| Operating Temperature | 14~158°F(-10~70°C) |
| Package | Tray |
| Size / Dimension | Square - 25mm L x 25mm H |
| Other | |
| Air Flow | 2.4 CFM (0.067m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | AFB02512 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Delta Electronics |
| Product Status | Active |
| RPM | 13000 RPM |
| Series | AFB |
| Static Pressure | 0.300 in H2O (74.7 Pa) |
| Termination | 2 Wire Leads |
| Weight | 0.024 lb (10.89 g) |
| Width | 10.00mm |
