Infineon TechnologiesGermany

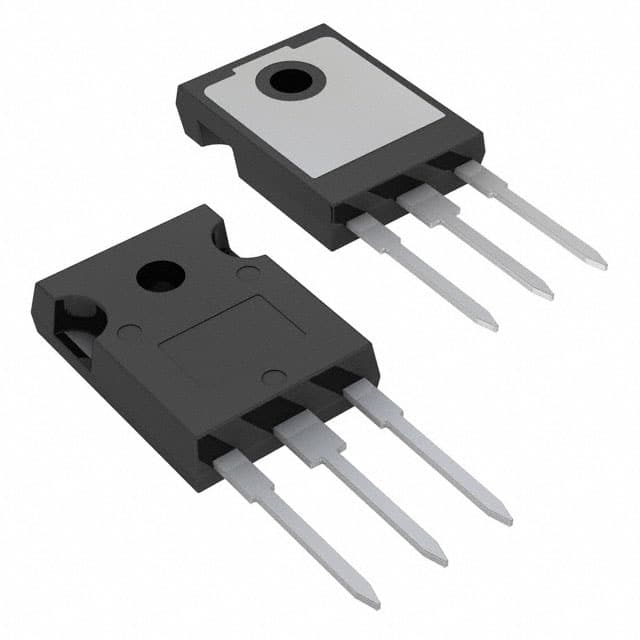

IC DISCRETE 600V TO247-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector (Ic) (Max) | 40 A |
| Current - Collector Pulsed (Icm) | 60 A |
| Power - Max | 166 W |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~175°C(TJ) |
| Package | Tube |
| Package / Case | TO-247-3 |
| Supplier Device Package | PG-TO247-3-41 |
| Other | |
| Base Product Number | AIKW20 |
| Gate Charge | 120 nC |
| IGBT Type | Trench Field Stop |
| Input Type | Standard |
| Mfr | Infineon Technologies |
| Product Status | Active |
| Series | Automotive, AEC-Q101, TrenchStop™ |
| Switching Energy | 310µJ (on), 460µJ (off) |
| Td (on/off) @ 25°C | 18ns/199ns |
| Test Condition | 400V, 20A, 12Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.05V @ 15V, 20A |
