Advanced Micro DevicesUnited States
COMPARATOR
All alternatives
View full reportTechnical parameters
Key specs
Elements1
Output typePush-pull
Propagation delay15 nsMax
Supply voltage-5.7 ~ -6.3 V
Quiescent current42 mAMax
| Power | |
|---|---|
| Current - Input Bias (Max) | 13µA |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 42mA |
| Voltage - Supply, Single/Dual (±) | -5.7V ~ -6.3V, 4.75V ~ 5.25V |
| AC and DC characteristics | |
| CMRR, PSRR (Typ) | 80dB CMRR, 60dB PSRR |
| Propagation Delay (Max) | 15ns |
| Voltage - Input Offset (Max) | 10mV @ 5V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 0°C~70°C |
| Package | Bulk |

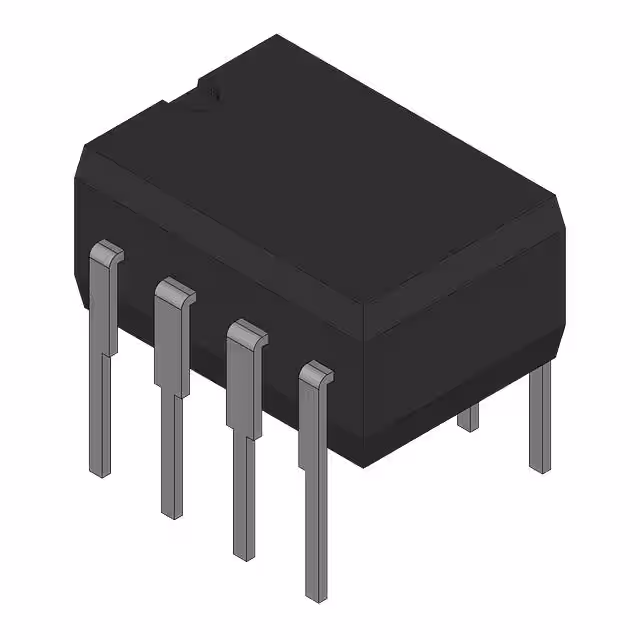

| Package / Case | 8-DIP |
| Supplier Device Package | 8-PDIP |
| Other | |
| Hysteresis | - |
| Mfr | Advanced Micro Devices |
| Number of Elements | 1 |
| Output Type | TTL |
| Product Status | Active |
| Series | - |
| Type | General Purpose |
