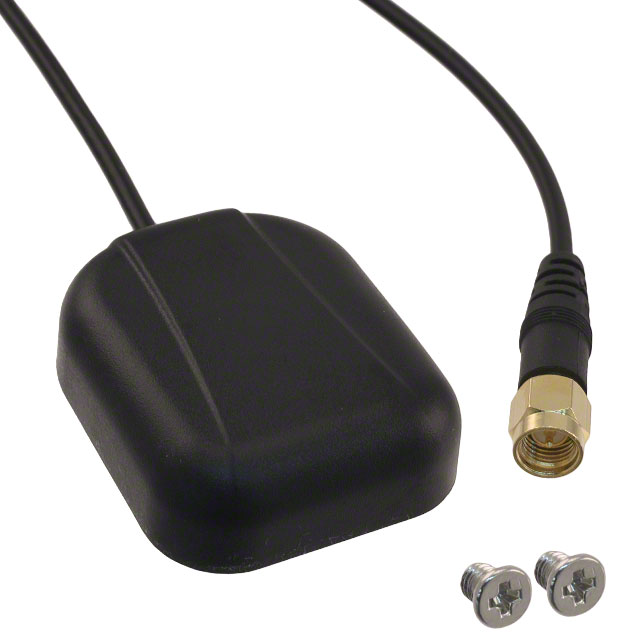

ANT-GPS-SH-SMA
TE ConnectivitySwitzerland

ANT-GPS-SH-SMA

RF Antennas

RF ANT 1.575GHZ MOD SMA MALE 3M

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

AC and DC characteristics
Frequency (Center/Band)1.575GHz
Frequency GroupUHF (1GHz ~ 2GHz)
Frequency Range1.570GHz ~ 1.580GHz
Gain5dB
Environment and package
Height (Max)0.492" (12.50mm)
Mounting TypeMagnetic, Chassis Mount
Other
Antenna TypeModule
ApplicationsGPS
FeaturesLNA
Ingress Protection-
ManufacturerTE Connectivity Linx
Number of Bands1
PackagingBulk
Part StatusObsolete
Return Loss-
RF Family/StandardNavigation
SeriesSH
TerminationSMA Male
VSWR1.5
