Alpha & Omega Semiconductor Inc.United States
MOSFET N-CH 20V 6.5A SOT23-3L
All alternatives
View full reportTechnical parameters
Key specs
ChannelN-channel
Drain-source voltage20 V
Continuous drain current6.5 A
On-resistance22 mΩMax · 6.5A
Gate threshold voltage1 VMax · 250μA
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Ta) |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Power Dissipation (Max) | 1.4W (Ta) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

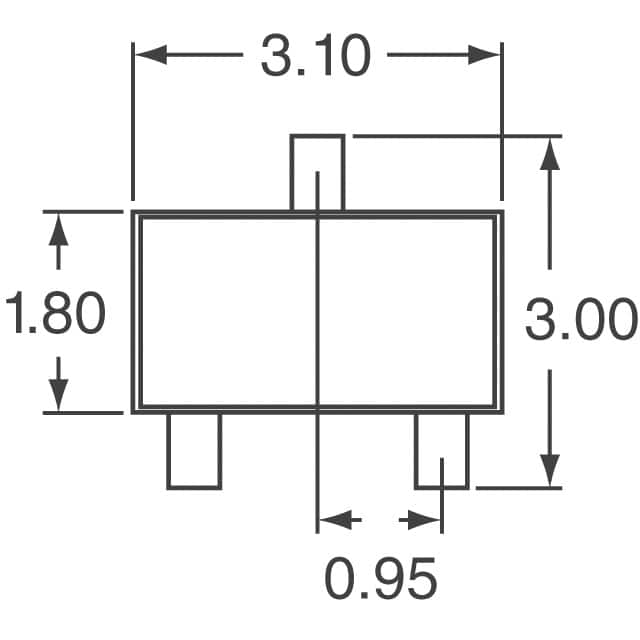

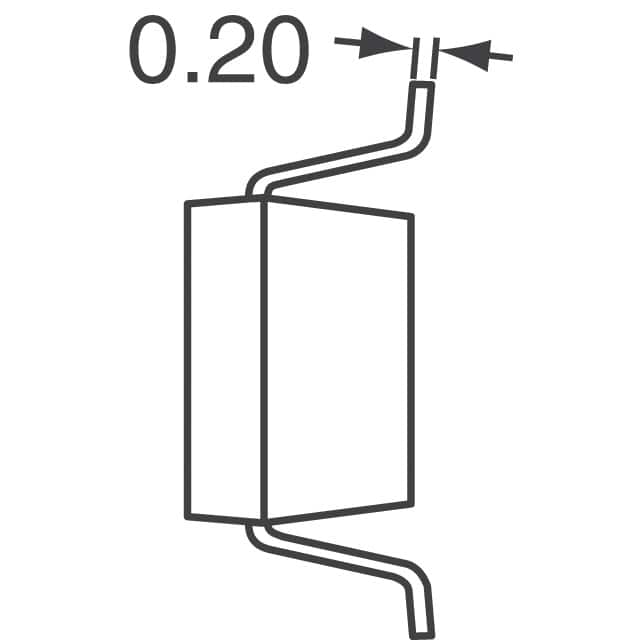

| Package / Case | 3-SMD, SOT-23-3 Variant |
| Supplier Device Package | SOT-23-3 |
| Other | |
| FET Feature | - |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1160 pF @ 10 V |
| Mfr | Alpha & Omega Semiconductor Inc. |
| Product Status | Not For New Designs |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 6.5A, 4.5V |
| Series | - |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | ±8V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
