Microchip TechnologyUnited States

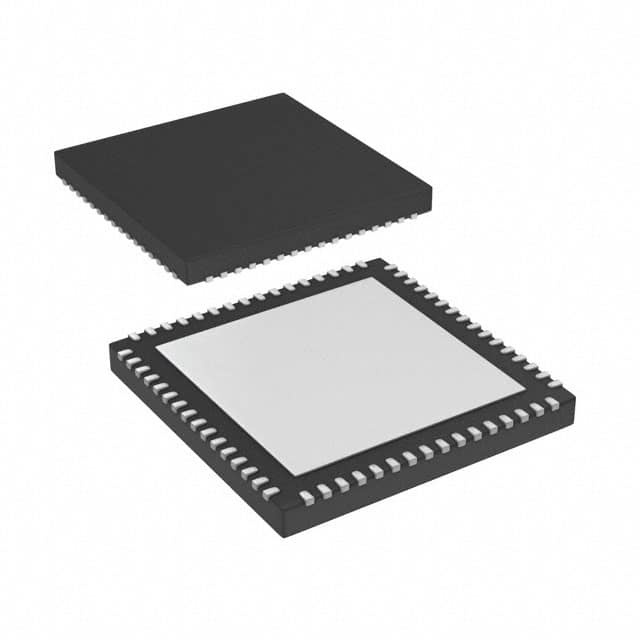

IC RF TXRX+MCU 802.15.4 64VFQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 5mA ~ 12.5mA |
| Current - Transmitting | 8mA ~ 14.5mA |
| Power - Output | 3.5dBm |
| Voltage - Supply | 1.8V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | 256kB Flash, 8kB EEPROM, 32kB SRAM |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) |
| Other | |
| Base Product Number | ATMEGA256 |
| Data Rate (Max) | 2Mbps |
| GPIO | 35 |
| Mfr | Microchip Technology |
| Modulation | DSSS, O-QPSK |
| Product Status | Active |
| Protocol | Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -100dBm |
| Serial Interfaces | I²C, JTAG, SPI, USART |
| Series | - |
| Type | TxRx + MCU |
