AurasemiSouth Korea

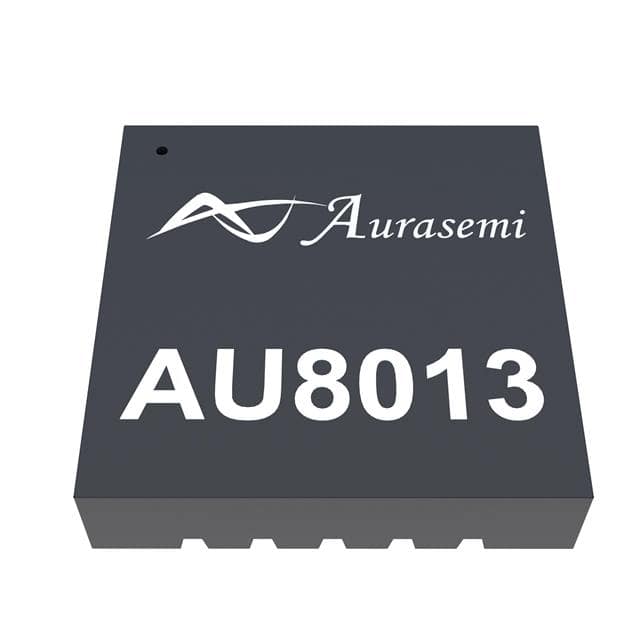

LDO SMT 2A VREF=0.8V, 38DB PSRR
All alternatives
View full reportTechnical parameters
Key specs
Output voltage800 mV ~ 6 V
Output current2 AMax
Input voltage≤ 6.5 V
Dropout voltage166 mVMax · 2A
Quiescent current2.4 mATyp
| Power | |
|---|---|
| Current - Output | 2A |
| Current - Quiescent (Iq) | 2.4 mA |
| Voltage Dropout (Max) | 0.166V @ 2A |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| AC and DC characteristics | |
| PSRR | 38dB (1MHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C(TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 20-QFN (3.5mm x 3.5mm) |
| Supplier Device Package | 20-QFN (3.5mm x 3.5mm) |
| Other | |
| Control Features | Enable, Power Good |
| Mfr | Aurasemi |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Series | LDO |
