Cornell Dubilier Electronics (CDE)United States

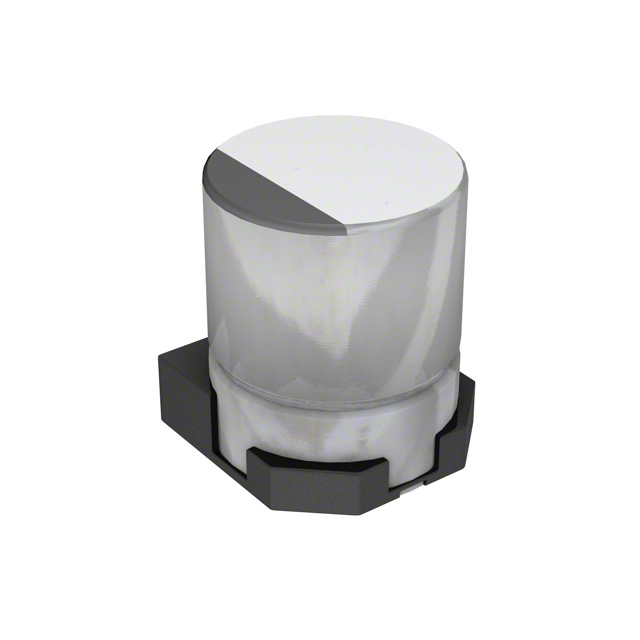

AVE106M35C12T-F
Aluminum Electrolytic CapacitorsCAP ALUM 10UF 20% 35V SMD
All alternatives
View full reportTechnical parameters
Key specs
Capacitance10 µF
Rated voltage35 V
Tolerance20 %
ESR19.89 ΩMax · 120Hz
Lifetime2 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 35 V |
| AC and DC characteristics | |
| Ripple Current @ Low Frequency | 34 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Other | |
| Applications | General Purpose |
| Capacitance | 10 µF |
| ESR (Equivalent Series Resistance) | 19.89Ohm @ 120Hz |
| Lead Spacing | - |
| Mfr | Cornell Dubilier Knowles |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status | Obsolete |
| Polarization | Polar |
| Ratings | - |
| Series | AVE |
| Tolerance | ±20% |
