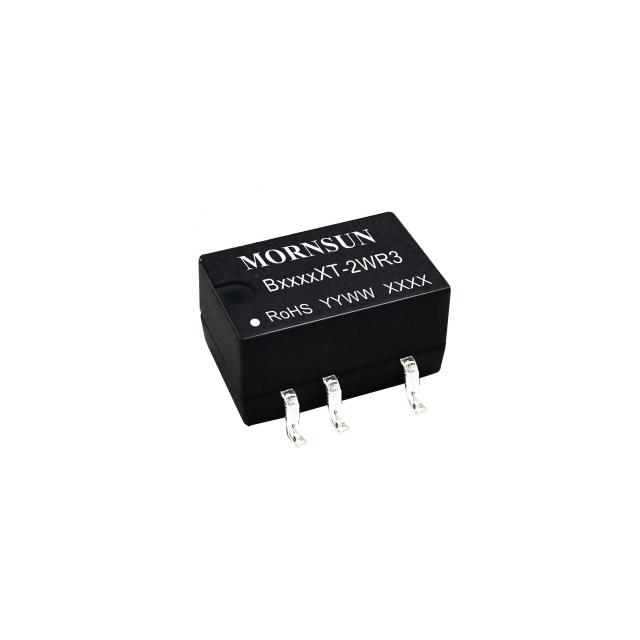

Mornsun America, LLCChina
DC DC CONVERTER 5V 2W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage4.5 ~ 5.5 V
Output voltage5 V
Output current400 mAMax
Power2 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CE, UKCA |
| Control Features | - |
| Efficiency | 84% |
| Features | - |
| Mfr | Mornsun America, LLC |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | B0505XT-2WR3 (2W) |
| Standard Number | 62368-1 |
| Type | Isolated Module |
