View full reportTechnical parameters
Key specs
Reverse voltage40 V
Average rectified current3 A
Forward voltage500 mVMax · 3 A
TypeSchottkyFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 3A |
| Current - Reverse Leakage @ Vr | 500 µA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 3 A |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) Cut Tape (CT) |

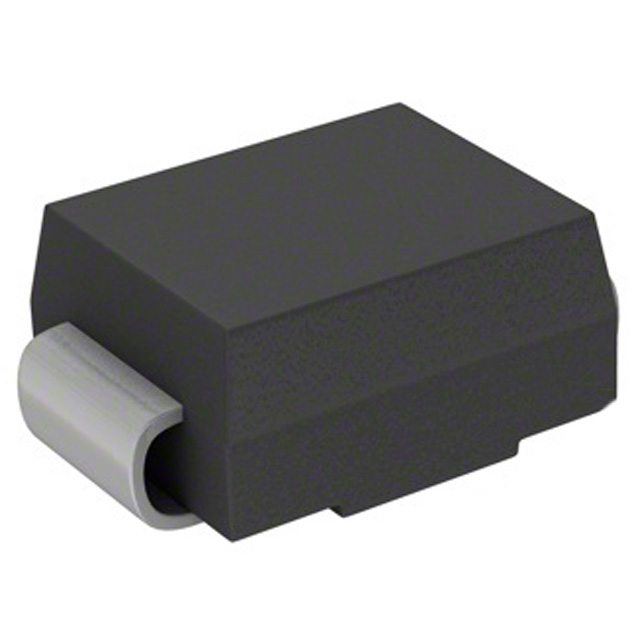

| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Other | |
| Base Product Number | B340 |
| Capacitance @ Vr, F | 200pF @ 4V, 1MHz |
| Mfr | Diodes Incorporated |
| Product Status | Discontinued at Digi-Key |
| Series | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
