AntenovaUnited Kingdom

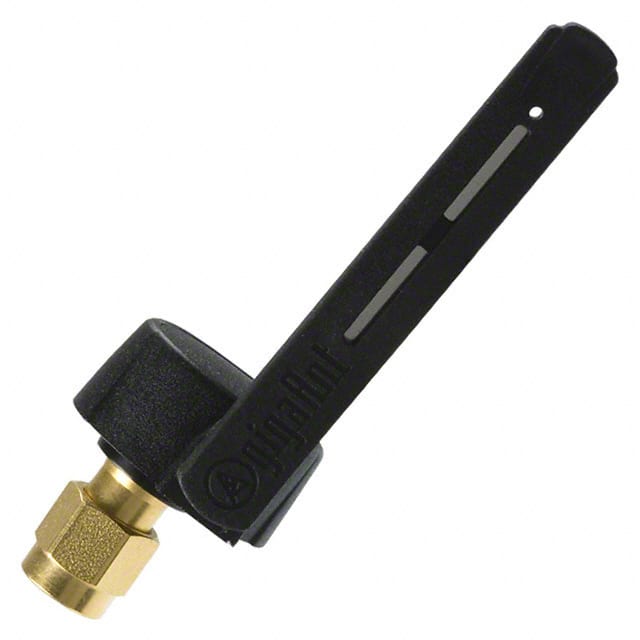

RF ANT 2.4GHZ BLADE SMA MALE PAN
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency (Center/Band) | 2.45GHz |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Gain | 2.2dBi |
| Environment and package | |
| Height (Max) | 1.902" (48.30mm) |
| Mounting Type | Panel Mount |
| Package | Bulk |
| Other | |
| Antenna Type | Blade |
| Applications | Bluetooth, WiMedia™, WLAN, Zigbee™ |
| Features | - |
| Ingress Protection | - |
| Mfr | Antenova |
| Number of Bands | 1 |
| Product Status | Obsolete |
| Return Loss | -13dB |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Series | Titanis |
| Termination | SMA Male |
| VSWR | 1.6 |
