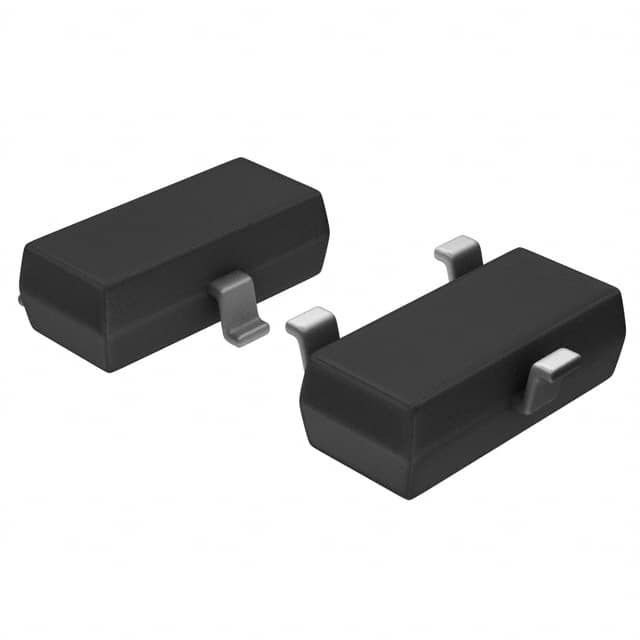

DIODE GEN PURP 75V 200MA SOT23
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage75 V
Average rectified current200 mA
Forward voltage855 mVMax · 10 mA
TypeStandardSmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Voltage - Forward (Vf) (Max) @ If | 855 mV @ 10 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Diode Type | Standard |
| Mfr | Yangzhou Yangjie Electronic Technology Co.,Ltd |
| Product Status | Active |
| Reverse Recovery Time (trr) | 4 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
