View full reportTechnical parameters
Key specs
Reverse voltage200 V
Average rectified current200 mA
Forward voltage1.25 VMax
| Power | |
|---|---|
| IFSM-正向峰值电流 | 2.5A |
| IF-二极管正向电流 | 200mA |
| IF-最大输出电流 | 200mA |
| IR-最大反向漏电流 | 0.1μA |
| IR-最大反向电流 | 0.1μA |
| VRRM-反向重复峰值电压 | 200V |
| VRRM-可重复反向峰值电压 | 200V |
| Environment and package | |

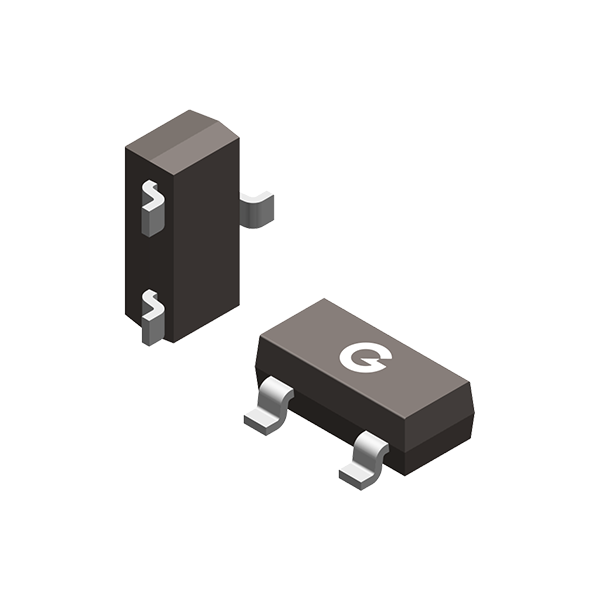

| 封装类型1 | SOT23 |
| Other | |
| CT-总电容 | Npf |
| Pd-功率耗散 | 0.25W |
| PD-最大耗散功率 | 0.25W |
| TJ-最大工作结温 | 150℃ |
| trr-最大反向恢复时间 | 50ns |
| VF-二极管导通压降 | 1250mV |
| VF-最大正向压降 | 1250mV |
| 引脚数量1 | 3 |
