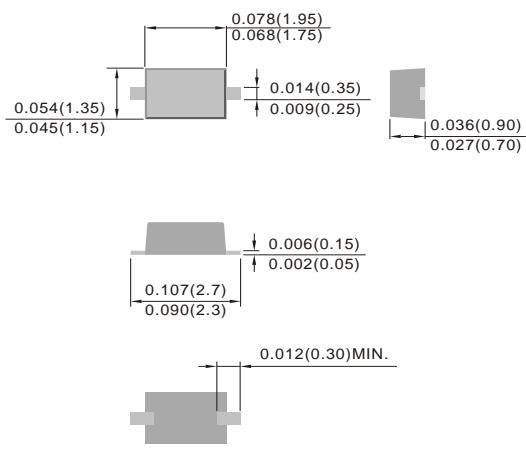

SOD-323 Dimension Unit: inch(m…

SOD-323 Dimension Unit: inch(m…

Panjit International Inc.Taiwan, China

BAS316

SOD-323

BAS316 is a 100V, 250mA SOD-323 package surface mount switching diode with fast switching speed and low leakage current, compliant with RoHS 2.0.Checked against the datasheet

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Datasheet-verified parameters

17 items
ParameterValue and test conditionsSource
PackageSOD-323
Operating Junction Temperature Range-55~150 °C
RoHSLead free in compliance with EU RoHS 2.0
Reverse Voltage100 V
Peak Reverse Voltage100 V
Maximum Average Forward Current250 mA
Non-repetitive Peak forward current410.5 A (tp = 0.001 ms, 1 ms, 1 s; T_J(init)=25°C)
Repetitive peak forward current500 mA (tp ≤ 0.5 ms; D ≤ 0.25)
Power Dissipation400 mW
Maximum Junction Capacitance1.5 pF (Measured at 1 MHz And Applied V_R=0 V)
Typical Thermal Resistance (Junction to Ambient)500 °C/W
Typical Thermal Resistance (Junction to Case)200 °C/W
Storage Temperature Range-55~150 °C
Forward VoltageMax 1.25 V (I_F=150 mA, T_J=25°C)
Reverse CurrentMax 0.5 uA (V_R=100 V, T_J=25°C)
Maximum Reverse Recovery Time4 ns
Halogen FreeGreen molding compound as per IEC 61249 standard
All parameters (15)ExpandCollapse
Power
IFSM-正向峰值电流4A
IF-二极管正向电流250mA
IF-最大输出电流250mA
IR-最大反向漏电流0.5μA
IR-最大反向电流NμA
VRRM-反向重复峰值电压100V
VRRM-可重复反向峰值电压100V
Environment and package
封装类型1SOD323
Other
CT-总电容0.35pf
Pd-功率耗散0.4W
PD-最大耗散功率0.25W
trr-最大反向恢复时间4ns
VF-二极管导通压降1250mV
VF-最大正向压降715mV
引脚数量12
