View full reportTechnical parameters
| Power | |
|---|---|
| IFSM-正向峰值电流 | 4A |
| IF-二极管正向电流 | 250mA |
| IF-最大输出电流 | 250mA |
| IR-最大反向漏电流 | 0.5μA |
| IR-最大反向电流 | NμA |
| VRRM-反向重复峰值电压 | 100V |
| VRRM-可重复反向峰值电压 | 100V |
| Environment and package | |

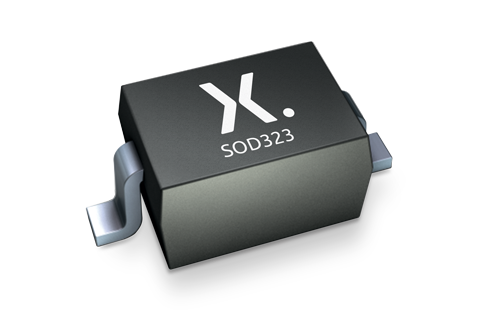

| 封装类型1 | SOD323 |
| Other | |
| CT-总电容 | 0.35pf |
| Pd-功率耗散 | 0.4W |
| PD-最大耗散功率 | 0.25W |
| trr-最大反向恢复时间 | 4ns |
| VF-二极管导通压降 | 1250mV |
| VF-最大正向压降 | 715mV |
| 引脚数量1 | 2 |
