View full reportTechnical parameters
| Power | |
|---|---|
| IFSM-正向峰值电流 | 0.2A |
| IF-二极管正向电流 | 0.12A |
| IR-最大反向漏电流 | 10μA |
| VRRM-反向重复峰值电压 | 40V |
| Environment and package | |

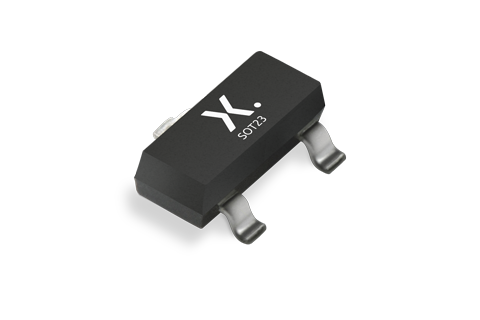

| 封装类型1 | TO-236 |
| Other | |
| CT-总电容 | 5pf |
| Pd-功率耗散 | 0.25W |
| TJ-最大工作结温 | 150℃ |
| trr-最大反向恢复时间 | 5ns |
| VF-二极管导通压降 | 500mV |
| 引脚数量1 | 3 |
