Diodes IncorporatedUnited States

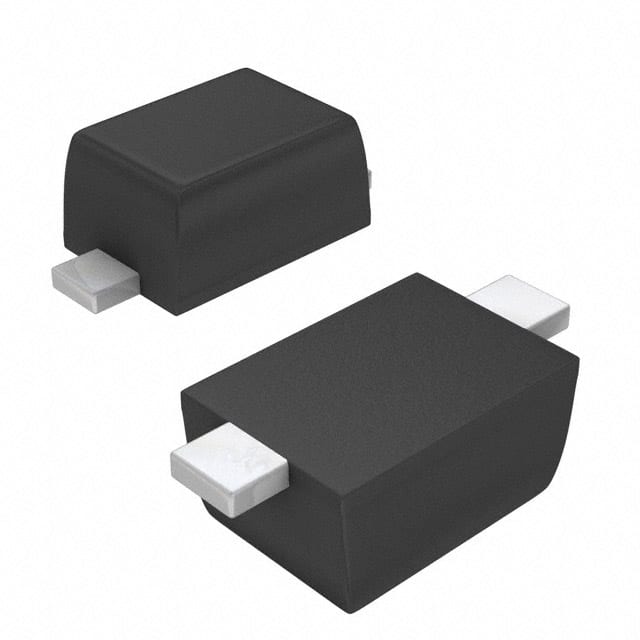

DIODE GEN PURP 300V 250MA SOD523
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage300 V
Average rectified current250 mA
Forward voltage1.1 VMax · 100 mA
TypeStandardFast Recovery =< 500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 250mA |
| Current - Reverse Leakage @ Vr | 150 nA @ 250 V |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Other | |
| Base Product Number | BAS521 |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Diode Type | Standard |
| Mfr | Diodes Incorporated |
| Product Status | Active |
| Reverse Recovery Time (trr) | 50 ns |
| Series | Automotive, AEC-Q101 |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
