Vishay General Semiconductor - Diodes DivisionUnited States

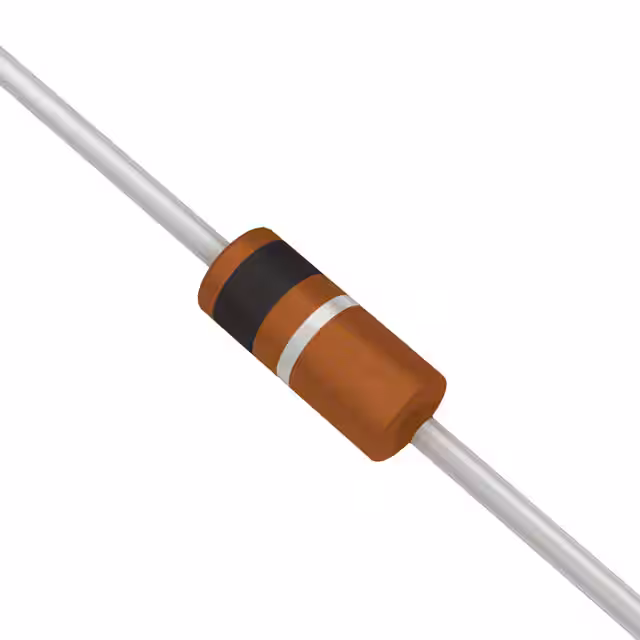

DIODE SCHOTTKY 100V 100MA DO35
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage100 V
Average rectified current100 mA
Forward voltage1 VMax · 200 mA
TypeSchottkySmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 100mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature - Junction | 125°C(Max) |
| Package | Cut Tape (CT); Tape & Box (TB) |
| Package / Case | DO-204AH, DO-35, Axial |
| Supplier Device Package | DO-35 (DO-204AH) |
| Other | |
| Base Product Number | BAT41 |
| Capacitance @ Vr, F | 2pF @ 1V, 1MHz |
| Diode Type | Schottky |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Product Status | Active |
| Series | Automotive, AEC-Q101 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
