SMC Diode SolutionsUnited States

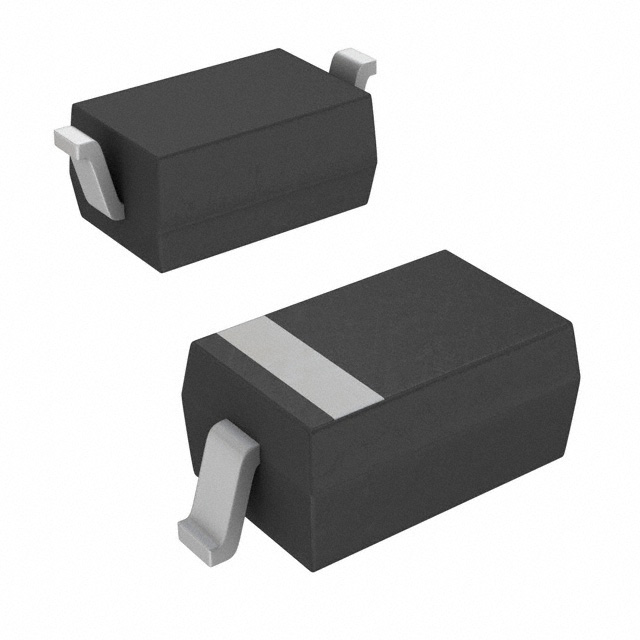

DIODE SCHOTTKY 30V 200MA SOD123
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage30 V
Average rectified current200 mA
Forward voltage1 VMax · 200 mA
TypeSchottkySmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 500 nA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Package | Tape & Reel (TR) |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Other | |
| Base Product Number | BAT43 |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mfr | SMC Diode Solutions |
| Product Status | Active |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
