Nexperia USA Inc.Netherlands

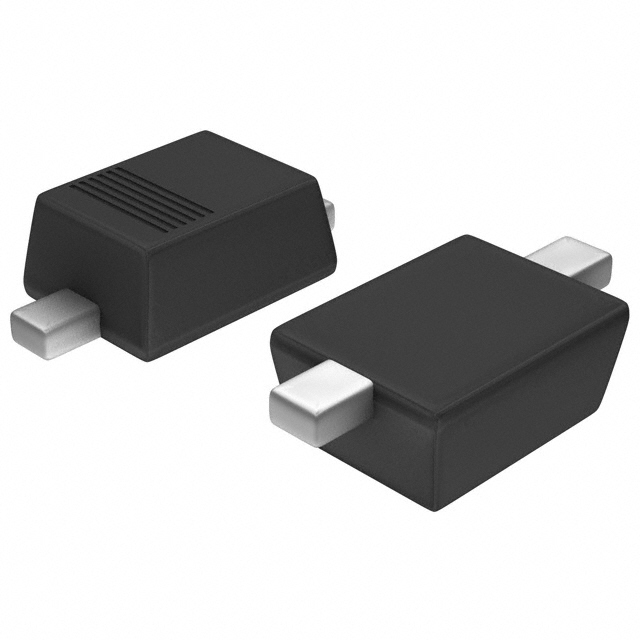

DIODE SCHOTTKY 30V 200MA SOD323F
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage30 V
Average rectified current200 mA
Forward voltage800 mVMax · 100 mA
TypeSchottkySmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-90, SOD-323F |
| Supplier Device Package | SOD-323F |
| Other | |
| Base Product Number | BAT54 |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Diode Type | Schottky |
| Mfr | Nexperia USA Inc. |
| Product Status | Obsolete |
| Series | Automotive, AEC-Q101 |
| Speed | Small Signal =< 200mA (Io), Any Speed |
