View full reportTechnical parameters
Key specs
Reverse voltage30 V
Average rectified current200 mA
Forward voltage800 mVMax
| Power | |
|---|---|
| IFSM-正向峰值电流 | 0.6A |
| IF-二极管正向电流 | 0.2A |
| IR-最大反向漏电流 | 2μA |
| VRRM-反向重复峰值电压 | 30V |
| Environment and package | |

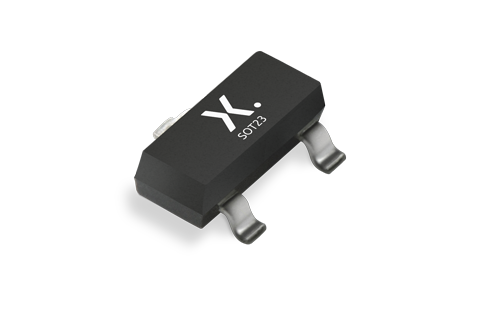

| 封装类型1 | SOT-23 |
| Other | |
| CT-总电容 | Npf |
| Pd-功率耗散 | 0.2W |
| TJ-最大工作结温 | 125℃ |
| trr-最大反向恢复时间 | 5ns |
| VF-二极管导通压降 | 800mV |
| 引脚数量1 | 3 |
Documents
DatasheetDatasheet · 207.3 KB · 2026-09-22MarketingMarketing · 6.0 MB · 2026-09-22Package DrawingPackage Drawing · 243.5 KB · 2026-09-22Package DrawingPackage Drawing · 220.9 KB · 2026-09-22Package DrawingPackage Drawing · 141.1 KB · 2026-09-22OtherOther · 117.6 KB · 2026-09-22Quality & ReliabilityQuality & Reliability · 90.9 KB · 2026-09-22Application NoteApplication Note · 87.4 KB · 2026-09-22Application NoteApplication Note · 82.4 KB · 2026-09-22
