onsemiUnited States

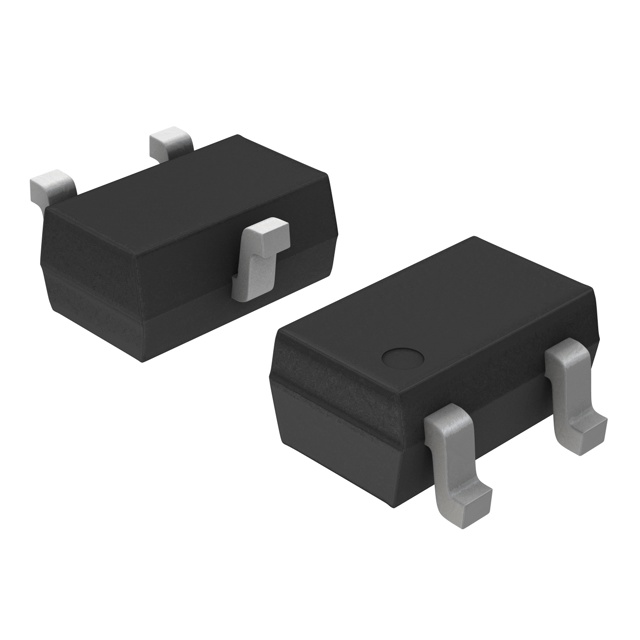

DIODE SCHOTTKY DET/SW 30V SOT323
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage30 V
Average rectified current200 mA
Forward voltage800 mVMax · 100 mA
TypeSchottkySmall Signal =< 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 200mA |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 100 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 (SOT323) |
| Other | |
| Base Product Number | BAT54 |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz |
| Mfr | onsemi |
| Product Status | Obsolete |
| Reverse Recovery Time (trr) | 5 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Technology | Schottky |
