Diodes IncorporatedUnited States

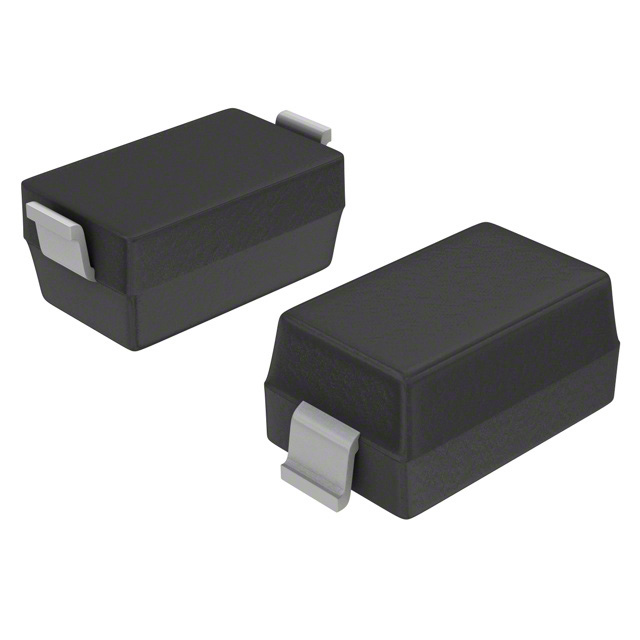

DIODE GEN PURP 130V 215MA SOD123
All alternatives
View full reportTechnical parameters
Key specs
Reverse voltage130 V
Average rectified current215 mA
Forward voltage1.25 VMax · 150 mA
TypeStandardStandard Recovery >500ns，> 200mA (Io)
| Power | |
|---|---|
| Current - Average Rectified (Io) | 215mA |
| Current - Reverse Leakage @ Vr | 5 nA @ 75 V |
| Voltage - DC Reverse (Vr) (Max) | 130 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | -65°C~150°C |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Other | |
| Base Product Number | BAV116W |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Diode Type | Standard |
| Mfr | Diodes Incorporated |
| Product Status | Discontinued at Digi-Key |
| Reverse Recovery Time (trr) | 3 µs |
| Series | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
