DIODE ARRAY GP 250V 200MA SOT23
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 200mA |
| Current - Reverse Leakage @ Vr | 100 nA @ 250 V |
| Voltage - DC Reverse (Vr) (Max) | 250 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

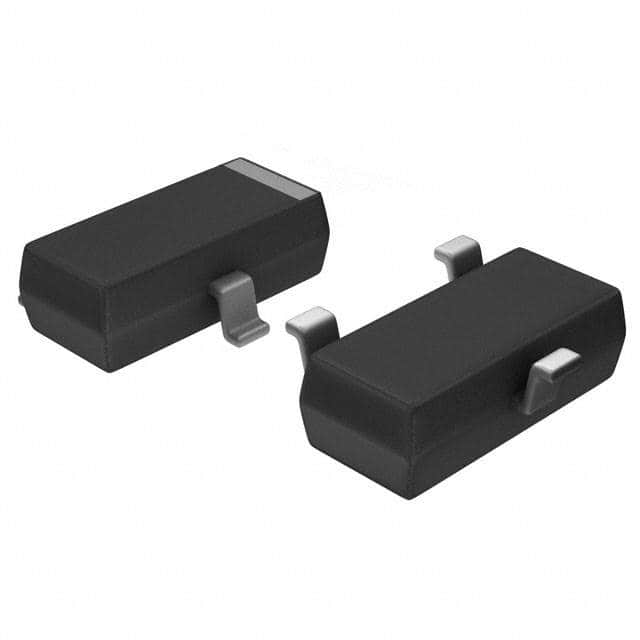

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Other | |
| Base Product Number | BAV23 |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Standard |
| Mfr | onsemi |
| Product Status | Active |
| Reverse Recovery Time (trr) | 50 ns |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
