XTALTQUnited States
Small size (2.5x2.0mm)SMD
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Frequency Range | 8~60 | MHz |
| Frequency Tolerance(FL) | ±10 | – | ±50 | ppm | +25℃ ± 2℃ |
| Environment and package | |
| Frequency Stability over Temperature(TL) | ±10 | – | ±50 | ppm | -40℃～+85℃ |
| High Temp Storage | GB/T2423.2 | 500±12 hours at +125℃±2℃ |
| Low Temp Storage | GB/T2423.1 | 500±12 hours at -40℃±2℃ |
| Operating Temperature Range | -40 | – | 125 | ℃ |
| Storage Temperature Range | -55 | – | 125 | ℃ |

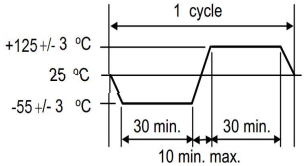

| TEMP CYCLING TEST | GB/T2423.22 | 10 cycles as below table |
| TEMP &HUMCYCLING TEST | GB/T2423.3 | Temperature:85℃±3℃Humidity:85%500h |
| Other | |
| Aging | ±2 | ppm |
| Drive Level(DL) | – | ±100 | ±300 | uW |
| Drop Test | GB/T2423.8 | 150CM height,fall freely onto concrete floor 3 times. |
| Equivalent Series Resistance（RR） | – | – | 300 | Ω |
| Insulation Resistance（IR） | 500 | – | MΩ | DC 100V |
| Load Capacitance(CL) | ±8 | – | ±∞ | pf |
| MechanicalShock | GB/T2423.5 | Device are shocked to half sine wave(1000G) three mutually perpendicular axes each 3 times. 0.5m sec.duration time. |
| MIN | TYP | MAX |
| Mode of Oscillation | Foundation | AT-CUT |
| Parameters | Value | Units | Conditions |
| Shunt Capacitance（C0） | – | – | 3 | pf |
| Solderability Test | IEC60068-2-58 | Solderabiliity: 245±5℃Height: 0.5mm Time: 3±0.5secondScaling powder: rosin resin methanol solvent (1:4) |
| Test item | Specification | Conditions |
| Vibration Test | GB/T2423.10 | Amplitude 1.52mmTime 20 minEnable Crystal from 10～2000Hz, X,Y,Z horizontal, 1time/ 2hours |
