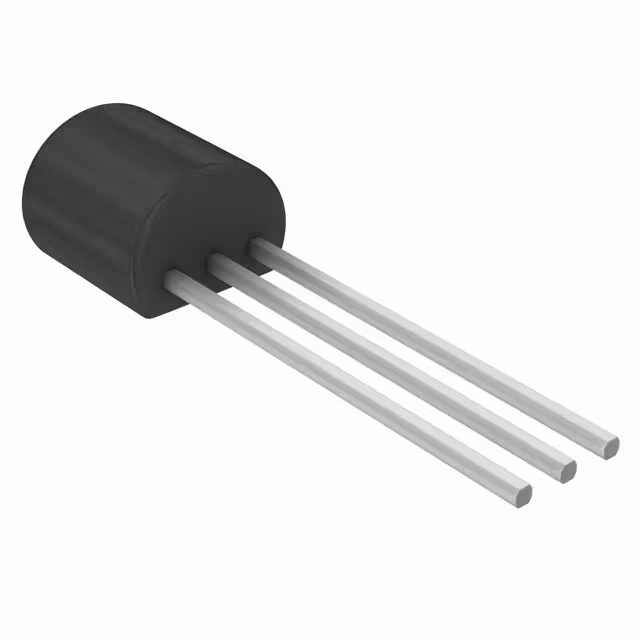

TRANS PNP 45V 0.8A TO92-3
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage45 V
Collector current800 mAMax
DC current gain160100mA
Power625 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 800 mA |
| Power - Max | 625 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C(TJ) |
| Package | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
| Other | |
| Base Product Number | BC327 |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
