Taiwan Semiconductor CorporationTaiwan, China

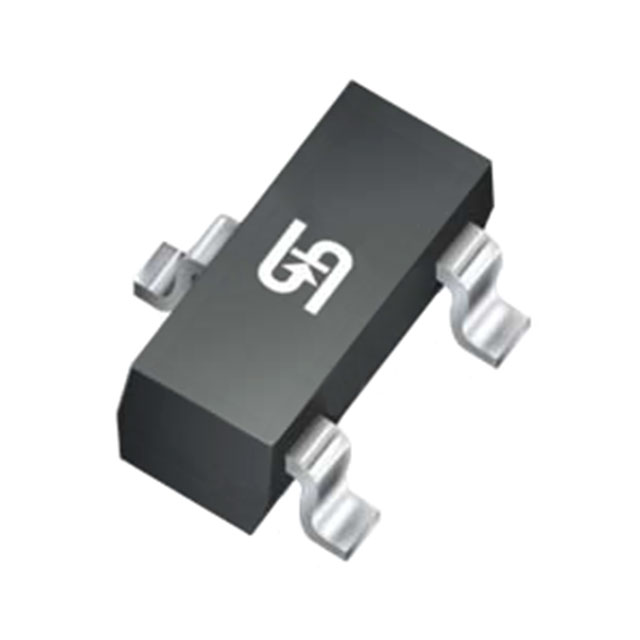

SOT-23, -50V, -0.5A, PNP BIPOLAR
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage45 V
Collector current500 mAMax
DC current gain250100mA
Power300 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 500 mA |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 100mA, 1V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23 |
| Other | |
| Base Product Number | BC807 |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Active |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 700mV @ 50mA, 500mA |
