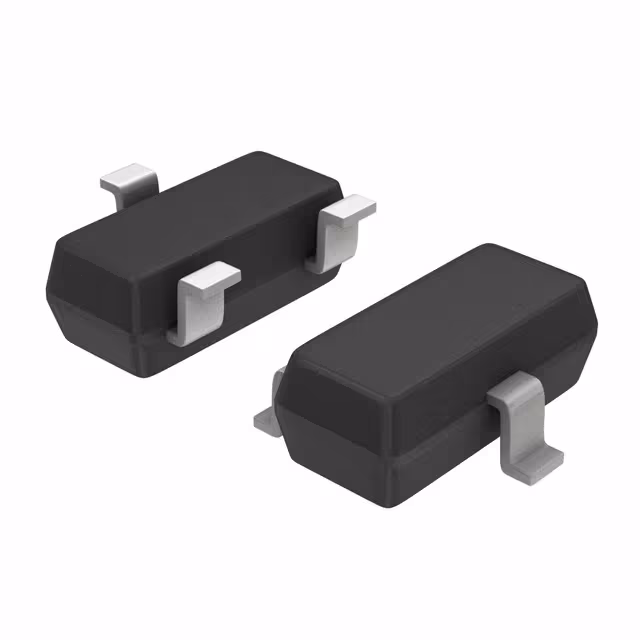

TRANS NPN 45V 0.1A SOT23-3
NPN silicon general purpose BJT, 45V VCEO, 100mA IC, SOT-23 package, -55 to +150°C operating temperature, Pb-free, Halogen-free, RoHS compliant.Checked against the datasheet
All alternatives
View full reportTechnical parameters
Key specs
TypeNPN
Collector-emitter voltage45 V
Collector current100 mAMax
DC current gain1102mA
Power300 mWMax
Datasheet-verified parameters
19 items| Parameter | Value and test conditions | Source |
|---|---|---|
| Type | NPN Silicon | |
| Collector-Emitter Voltage | 45 Vdc | |
| Collector Current - Continuous | 100 mAdc | |
| DC Current Gain | 100 to 450 (Typ 220) at IC=10mA, VCE=2.0Vdc | |
| Total Device Dissipation | 225 mW at TA=25°C (FR-5 Board) | |
| Package | SOT-23(Pb-Free) |
All parameters (17)
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 300 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 110 @ 2mA, 5V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Other | |
| Base Product Number | BC847 |
| Mfr | onsemi |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
Pinout and package
PackageSOT-23(Pb-Free)
| Pin | Name | Function | Source |
|---|---|---|---|
| 1 | Base | ||
| 2 | Emitter | ||
| 3 | Collector |
