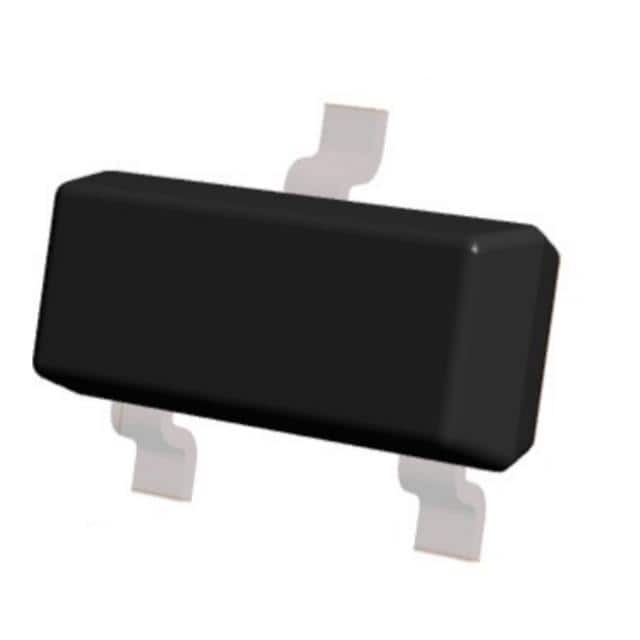

BC847C
Yangjie TechnologyChina

BC847C

ActiveTransistors - Bipolar (BJT) - SingleSOT-23

SOT-23 NPN 0.2W 0.1A 50V Transis

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

TypeNPN
Collector-emitter voltage45 V
Collector current100 mAMax
DC current gain4202mA
Power225 mWMax
Power
Current - Collector Cutoff (Max)100nA
Current - Collector (Ic) (Max)100 mA
Power - Max225 mW
Voltage - Collector Emitter Breakdown (Max)45 V
AC and DC characteristics
DC Current Gain (hFE) (Min) @ Ic, Vce420 @ 2mA, 5V
Frequency - Transition100MHz
Environment and package
Mounting TypeSurface Mount
Operating Temperature-55°C~150°C
PackageTape & Reel (TR)
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23
Other
MfrYangjie Technology
Product StatusActive
Series-
Transistor TypeNPN
Vce Saturation (Max) @ Ib, Ic500mV @ 5mA, 100mA

Documents

DatasheetDatasheet · 324.3 KB · 2026-09-22EnvironmentalEnvironmental · 5.9 MB · 2026-09-22EnvironmentalEnvironmental · 5.8 MB · 2026-09-22EnvironmentalEnvironmental · 1.5 MB · 2026-09-22EnvironmentalEnvironmental · 1.4 MB · 2026-09-22Package DrawingPackage Drawing · 265.5 KB · 2026-09-22
