Yangjie TechnologyChina
SOT-363 NPN+PNP 0.2W 0.1A 50 -50
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 2mA, 5V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C~150°C |
| Package | Tape & Reel (TR) |

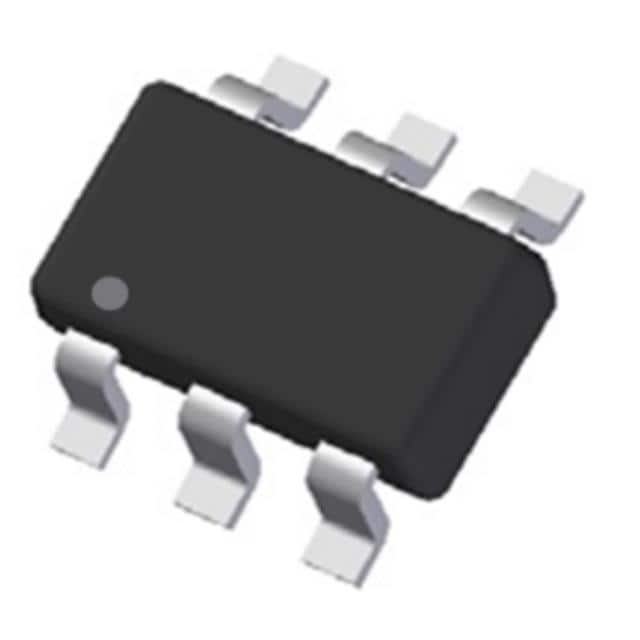

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
| Other | |
| Mfr | Yangjie Technology |
| Product Status | Active |
| Series | - |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) @ Ib, Ic | 600mV @ 5mA, 100mA |
