Nexperia USA Inc.Netherlands
30 V, 100 mA NPN general-purpose transistor
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| channel type (e) | NPN |
| Environment and package | |
| Automotive qualified | Y |
| Halogen free | Yes |

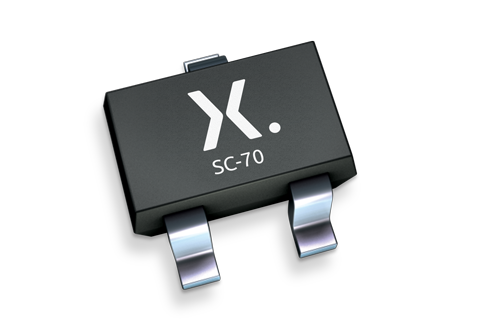

| Package name | SC-70 |
| Package version | SOT323 |
| RoHS | Compliant |
| Size | 2 x 1.25 x 0.95 |
| Other | |
| fT [min] | 100 |
| hFE [max] | 800 |
| hFE [min] | 110 |
| IC [max] | 100 |
| Ptot | 200 |
| VCEO [max] | 30 |
