NXP USA Inc.Netherlands

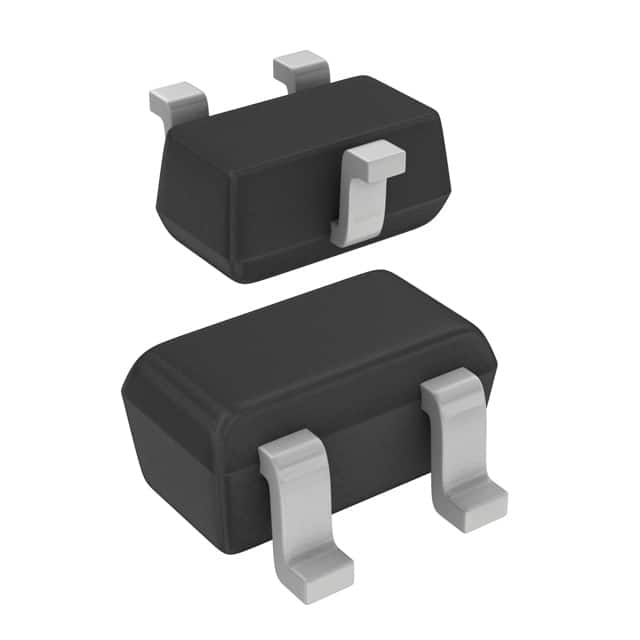

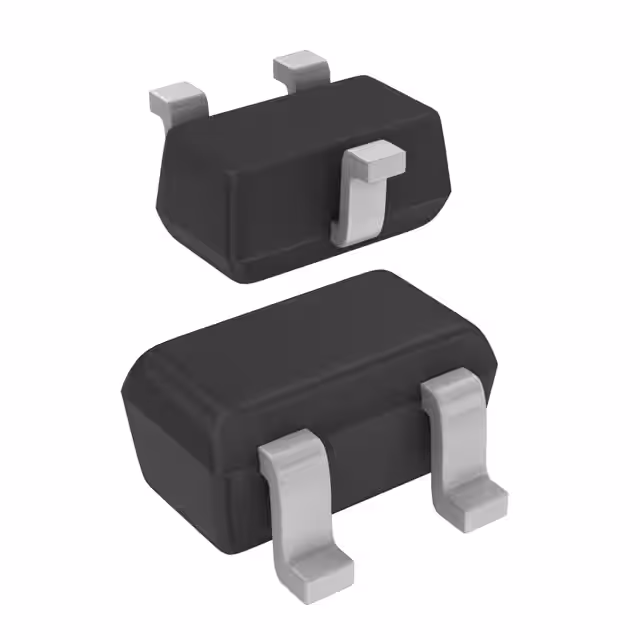

TRANS PNP 45V 0.1A SC75
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage45 V
Collector current100 mAMax
DC current gain4202mA
Power150 mWMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 15nA (ICBO) |
| Current - Collector (Ic) (Max) | 100 mA |
| Power - Max | 150 mW |
| Voltage - Collector Emitter Breakdown (Max) | 45 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 420 @ 2mA, 5V |
| Frequency - Transition | 100MHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | SC-75 |
| Other | |
| Base Product Number | BC85 |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Series | Automotive, AEC-Q101 |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 100mA |
